LED Cylinder Light - ACD01 Series , 2500lumens, Adjustable Wattage & CCT, 120-277V
Description
Architectural LED Cylinder Lights available in multiple sizes with surface, pendant, and wall mounting options. Features direct or direct/indirect distribution, 15°, 24°, 36°, and 60° beam angles, 2700K, 3000K, 3500K, and 4000K CCTs, and 90+ CRI for precise color rendering. Offers multiple housing and reflector finishes, dimmable drivers, and emergency backup options. Ideal for offices, hospitality, retail, education, and public spaces, backed by a 5-year warranty.
Construction
• Durable aluminum heat sink, boosting optical performance and service life.
• 3-in-1 Dimming Solution: 0-10V, Triac, and ELV.
• 3-in-1 Dimming Solution: 0-10V, Triac, and ELV.
Electrical
• 120–277 VAC input voltage.
• 3 Field-Selectable Wattage Levels.
• Dims down to a true 1%.
• PF > 0.9
• 3 Field-Selectable Wattage Levels.
• Dims down to a true 1%.
• PF > 0.9
Optics
• 5 Fixed-CCT Options: 2700K, 3000K, 3500K, 4000K, 5000K.
• CRI 90.
• 3-in-1 Dimming Solution: 0-10V, Triac, and ELV.
• Selectable Beam Angles: 18°, 24°, 36°, 50°.
• CRI 90.
• 3-in-1 Dimming Solution: 0-10V, Triac, and ELV.
• Selectable Beam Angles: 18°, 24°, 36°, 50°.
Weight
• 15W :1.50 lb
• 25W: 2.02 lb
• 40W : 4.03 lb
• 25W: 2.02 lb
• 40W : 4.03 lb
Model
• ACD01-3-15W-27VDDK
• ACD01-4-25W-27VDDK
• ACD01-6-40W-27VDDK
• ACD01-4-25W-27VDDK
• ACD01-6-40W-27VDDK
Certifications
• UL/cUL
Mount
• Surface Mount

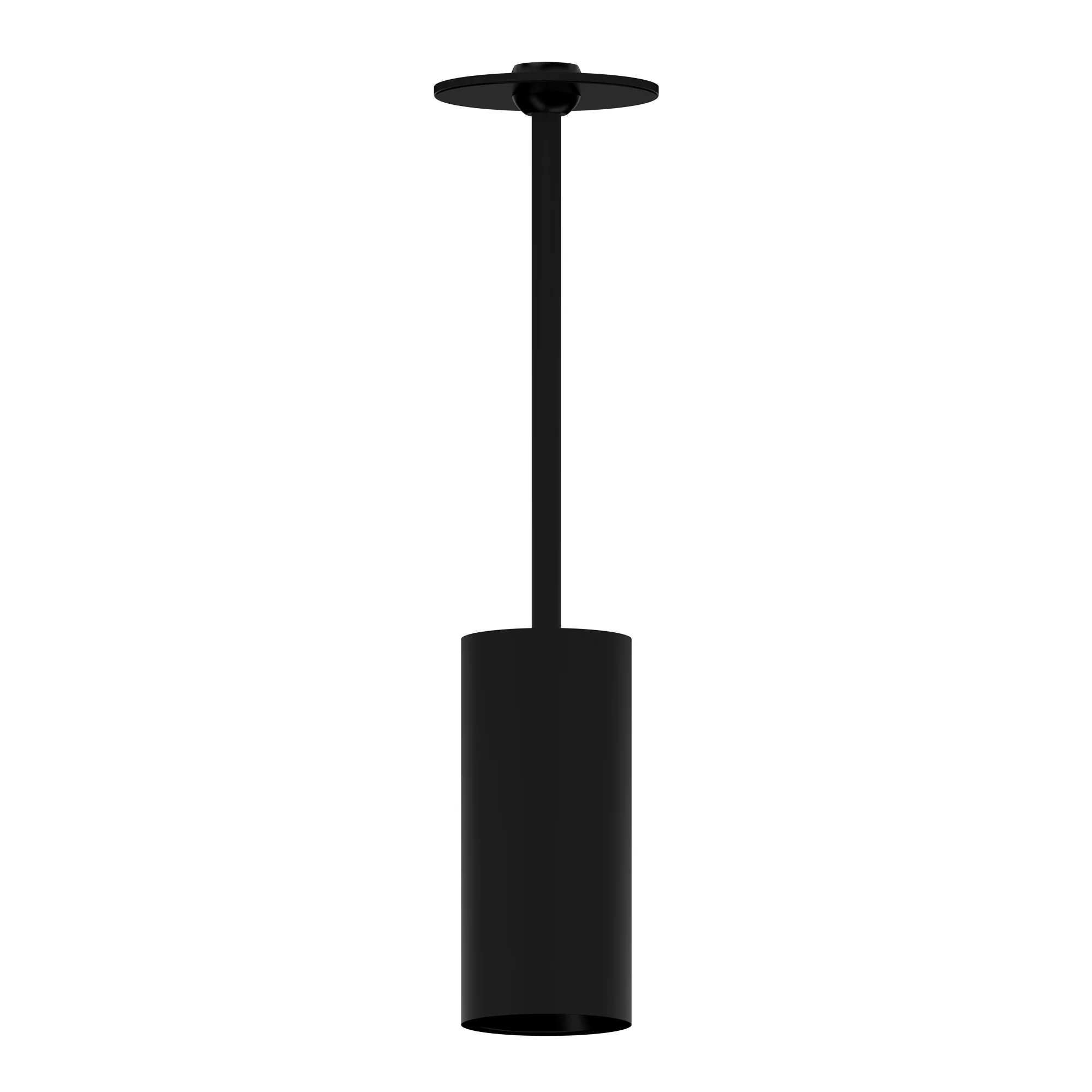

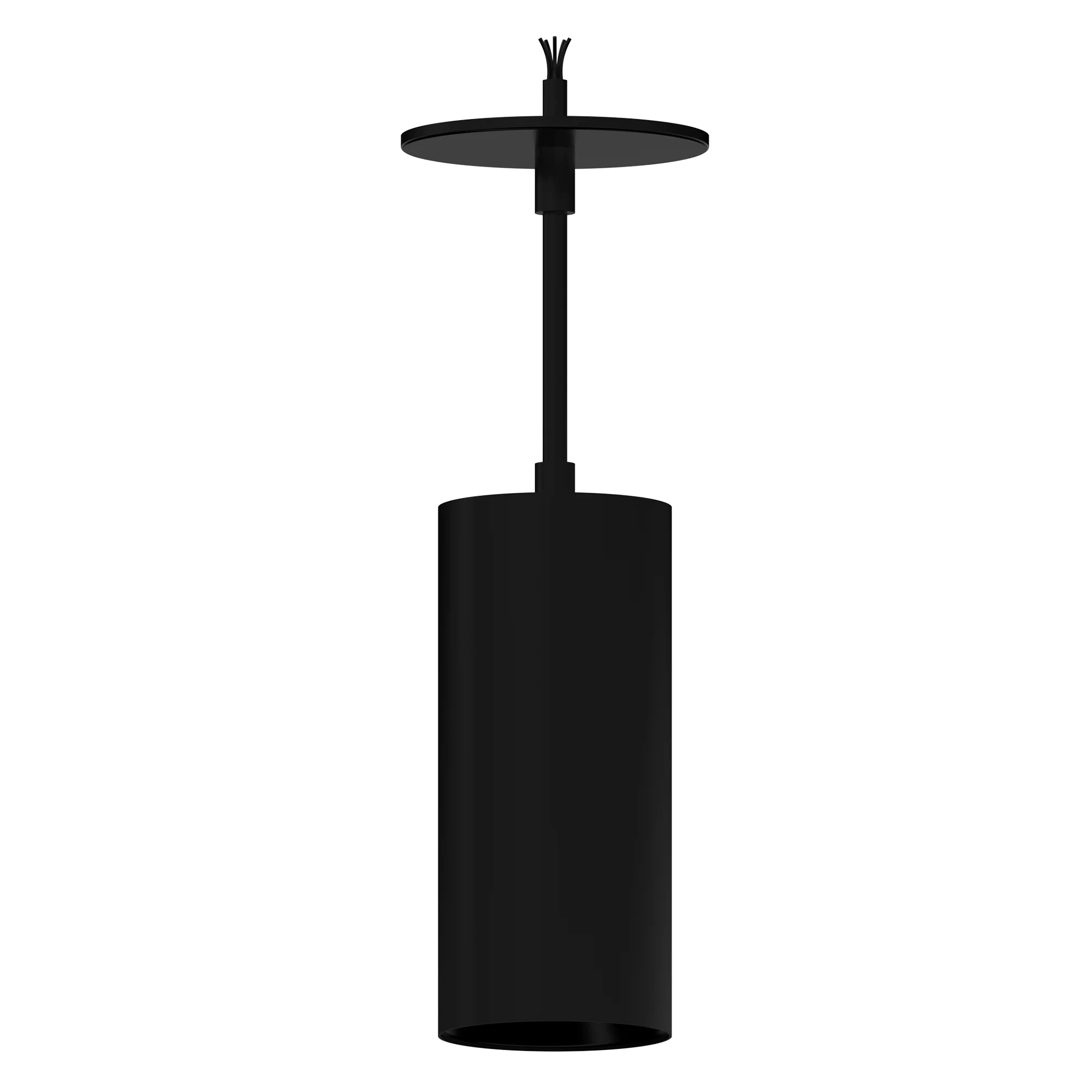

• Cord Pendant Mount
• Stem Pendant Mount
• Adjustable Surface Mount
• Cord Pendant Mount
• Stem Pendant Mount
• Adjustable Surface Mount
Application
• Commercial applications
• Retail stores
• Restaurants & cafes
• Office spaces
• Retail stores
• Restaurants & cafes
• Office spaces
Lifespan
• Estimated LED lifespan ≥ 100,000 hours.
Warranty
• 5-year warranty
Select CCT
Select Voltage
Select Mount
From $50.40
Original: $143.99
-65%LED Cylinder Light - ACD01 Series , 2500lumens, Adjustable Wattage & CCT, 120-277V—
$143.99
$50.40Product Information
