LED Linear Light - HPLSL03 Series, 4ft, 6240lumens, Adjustable CCT, 120-277V
Description
Architectural LED Linear Fixtures with multiple optical options, adjustable up/down light distribution, and outputs up to 1,550 lm/ft. Available in 2ft, 4ft, 6ft, and 8ft lengths with continuous-row connectors. Supports pendant, surface, wall, and recessed mounting. Select models feature wattage and CCT selection, Bluetooth, Tunable White, and Dim-to-Warm controls. Designed for commercial applications and backed by a 5-year warranty.
Construction
• Strong, durable formula for long-lasting color.
• The diffuser and endcaps at the ends of the fixture overlap to eliminate gaps and LED visibility.

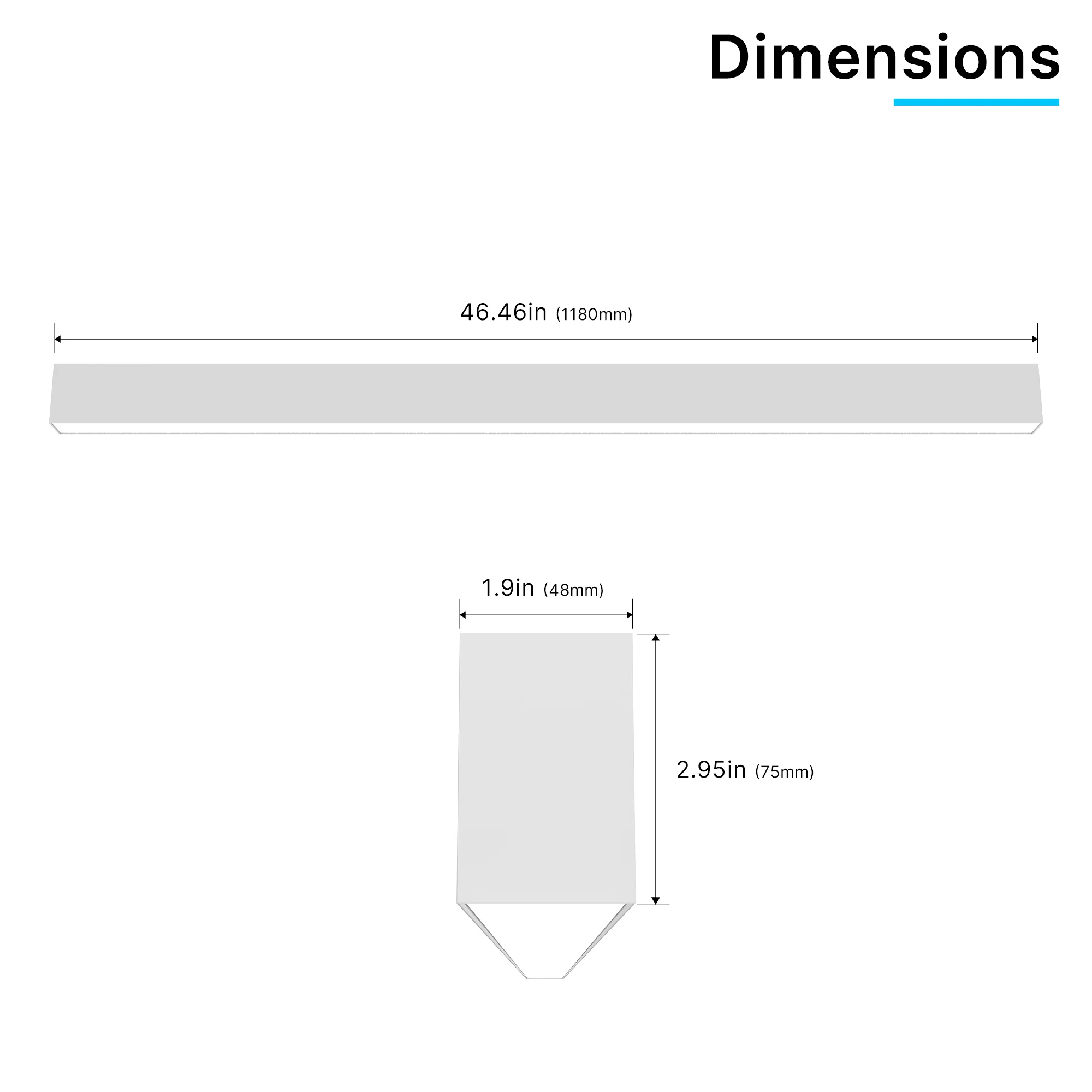

• Just 1.9 inches wide, featuring a minimalist and stylish look.
• Custom patterns with optional L, X, T, Y and V joiners.
• Pendant, surface or wall mount in 2', 4' and 8' lengths.
• The diffuser and endcaps at the ends of the fixture overlap to eliminate gaps and LED visibility.
• Just 1.9 inches wide, featuring a minimalist and stylish look.
• Custom patterns with optional L, X, T, Y and V joiners.
• Pendant, surface or wall mount in 2', 4' and 8' lengths.
Electrical
• Universal 120-277 VAC input voltage.
• 1-10V dimming driver with 10%-100% dimming range.
• Selectable Wattage Levels: 100%, 80%, 60%.
• PF > 0.9，THD < 20%.
• Highly efficient and durable Class II drivers are available.
• Operating Temperature Range: -20°C to 40°C (-4˚F - + 104˚F).
• 1-10V dimming driver with 10%-100% dimming range.
• Selectable Wattage Levels: 100%, 80%, 60%.
• PF > 0.9，THD < 20%.
• Highly efficient and durable Class II drivers are available.
• Operating Temperature Range: -20°C to 40°C (-4˚F - + 104˚F).
Optics
• Three optional types of indirect and direct light distributions can be set by dip switch.
• Three Field-Selectable CCTs :3500K, 4000K, 5000K.
• Scalable lumen packages range from 1,800 to 11,900 lumens and up to 124 lm/W.
• <5 SDCM color consistency, 80 CRI options.
• High-transmission polycarbonate lens for smooth light distribution and uniformity.
• Three Field-Selectable CCTs :3500K, 4000K, 5000K.
• Scalable lumen packages range from 1,800 to 11,900 lumens and up to 124 lm/W.
• <5 SDCM color consistency, 80 CRI options.
• High-transmission polycarbonate lens for smooth light distribution and uniformity.
Weight
• 2FT: 2.49 lb
• 4FT: 4.10 lb
• 4FT: 4.10 lb
Model
• LSL03-2FT-25W-27VDDK
• LSL03-4FT-50W-27VDDK
Note: “27V” represents 120-277VAC
• LSL03-4FT-50W-27VDDK
Note: “27V” represents 120-277VAC
Certifications
• UL/cUL
Mount
• Dry Wall Pendant Mount
• Drop Ceiling Pendant Mount
• Surface Mount
• Wall Mount
• Drop Ceiling Pendant Mount
• Surface Mount
• Wall Mount
Application
• Offices
• Conference rooms
• Education facilities
• Retail stores
• Supermarkets
• Reception areas
• Hallways
• Gyms
• Conference rooms
• Education facilities
• Retail stores
• Supermarkets
• Reception areas
• Hallways
• Gyms
Lifespan
• Estimated L70 ≥50,000-hour LED lifespan based on IES TM-21 calculations at 25°C.
Warranty
• 5-year warranty
